Overview
I designed an interactive dashboard to transform complex data into clear, visually compelling solutions for real-world challenges.
I designed an interactive dashboard to transform complex data into clear, visually compelling solutions for real-world challenges.
I designed an interactive dashboard to transform complex data into clear, visually compelling solutions for real-world challenges.
My role
Product Designer
Academic project at Harvard University
Timeline
6 weeks, Fall 2024
Collaboration
Diksha Chugh - Software Engineer
Diksha Chugh - Software Engineer
Diksha Chugh - Software Engineer
What I did
Product design, UXUI, Data visualization, Data analysis, Research, Storyboarding, Wireframing, Prototyping
Product design, UXUI, Data visualization, Data analysis, Research, Storyboarding, Wireframing, Prototyping
Product design, UXUI, Data visualization, Data analysis, Research, Storyboarding, Wireframing, Prototyping
Context

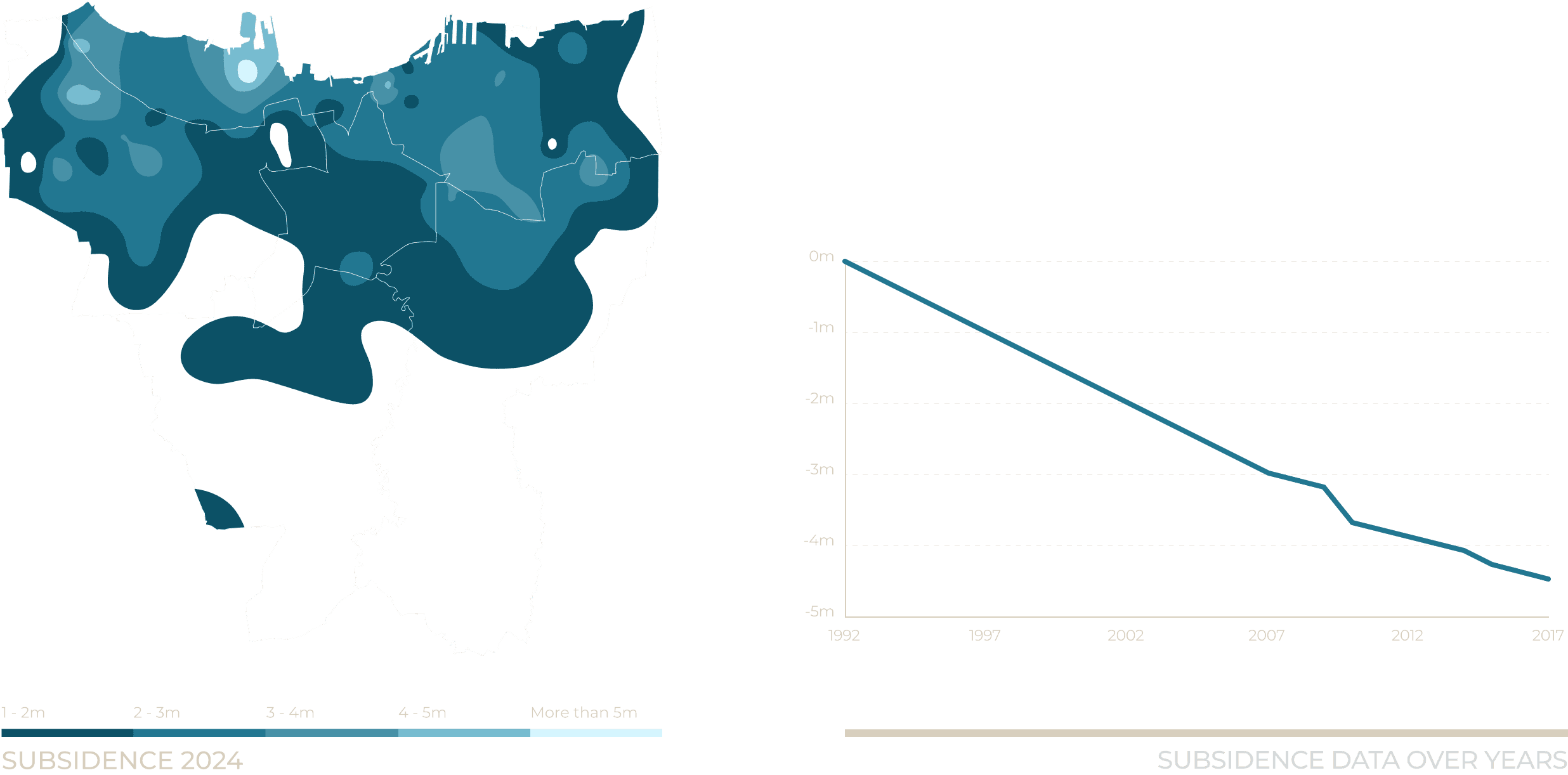

Jakarta is the fastest sinking city in the world.
By 2050, 50% of Jakarta will be underwater during high tides.
Jakarta is the fastest sinking city in the world.
By 2050, 50% of Jakarta will be underwater during high tides.
Jakarta is the fastest sinking city in the world.
By 2050, 50% of Jakarta will be underwater during high tides.
Groundwater over-extraction is the major factor.
Groundwater over-extraction is the major factor.
Groundwater over-extraction is the major factor.
Problem
Over 60% of people In Jakarta rely on groundwater as a primary water source.
Over 60% of people In Jakarta rely on groundwater as a primary water source.
Over 60% of people In Jakarta rely on groundwater as a primary water source.

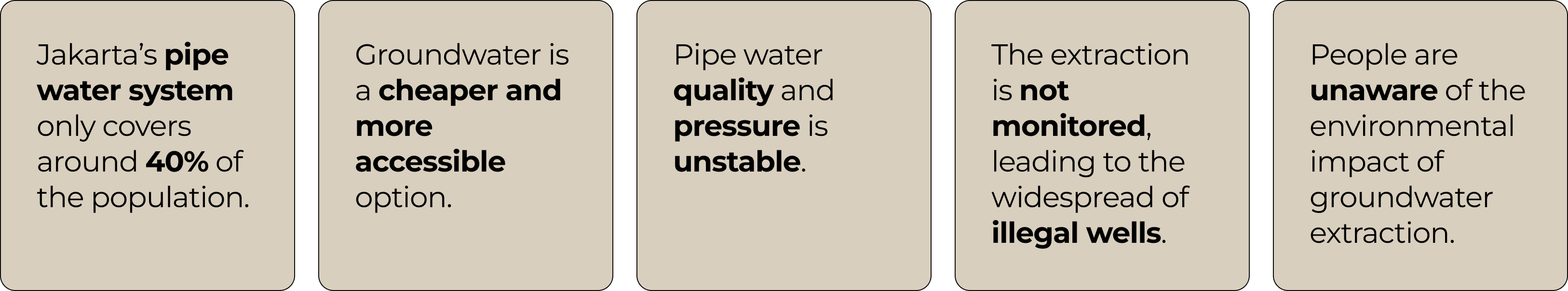

Because:
Because:
Because:

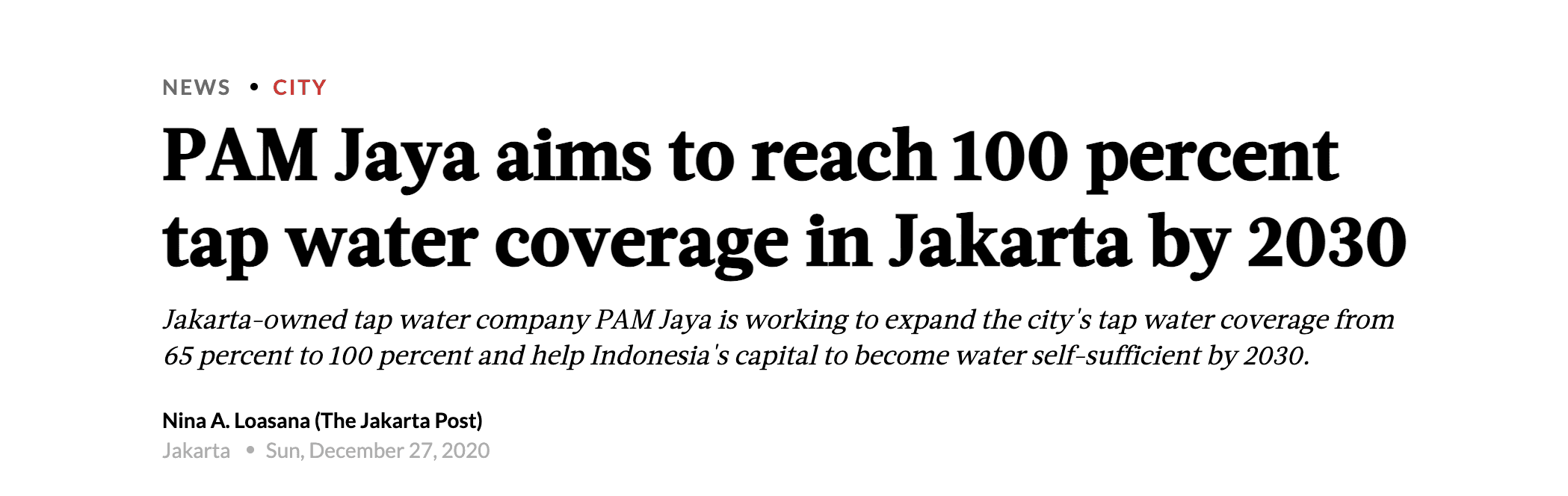

The government plans to achieve 100% pipe water coverage by 2030. However, pipe water coverage alone won't solve Jakarta's challenges.
The government plans to achieve 100% pipe water coverage by 2030. However, pipe water coverage alone won't solve Jakarta's challenges.
The government plans to achieve 100% pipe water coverage by 2030. However, pipe water coverage alone won't solve Jakarta's challenges.
Yes
Yes
But…
But…
Decision-makers need deeper insights into water usage behaviors.
Decision-makers need deeper insights into water usage behaviors.
Decision-makers need deeper insights into water usage behaviors.
Pain Point
Which areas need the most attention based on how people use water and what factors influence their choice of water sources?
Pain Point
Which areas need the most attention based on how people use water and what factors influence their choice of water sources?
Pain Point
Which areas need the most attention based on how people use water and what factors influence their choice of water sources?
Solution
I designed a web tool that connects data, community voices, and insights to help decision-makers and residents solve water challenges with targeted actions.
I designed a web tool that connects data, community voices, and insights to help decision-makers and residents solve water challenges with targeted actions.
I designed a web tool that connects data, community voices, and insights to help decision-makers and residents solve water challenges with targeted actions.
Outcome
20+ data points
20+ data points
20+ data points
Provided easy access to 20+ data points on water distribution, consumption, and risks across 44 districts and 267 subdistricts
Provided easy access to 20+ data points on water distribution, consumption, and risks across 44 districts and 267 subdistricts
Correlation
Correlation
Correlation
Visualized correlations between factors like pipe water coverage, groundwater reliance, and risk levels, supporting targeted interventions.
Visualized correlations between factors like pipe water coverage, groundwater reliance, and risk levels, supporting targeted interventions.
Adaptable Framework
Adaptable Framework
Adaptable Framework
Built a tool adaptable for other cities facing similar water management challenges.
Built a tool adaptable for other cities facing similar water management challenges.

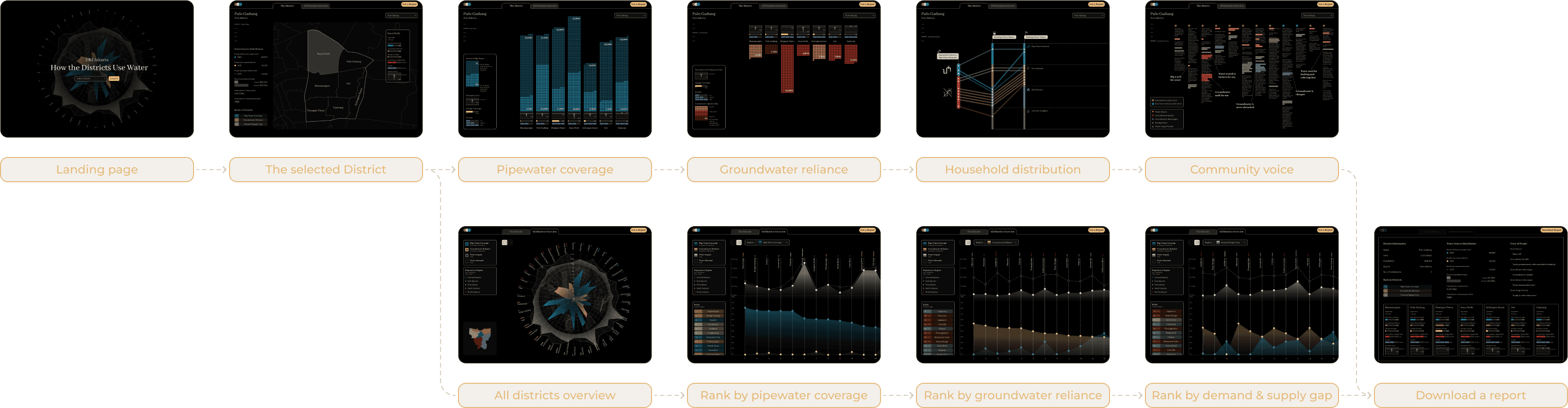

- Design Process -
District & Subdistrict
An interactive district map allows users to navigate and compare key data across subdistricts seamlessly.
An interactive district map allows users to navigate and compare key data across subdistricts seamlessly.
An interactive district map allows users to navigate and compare key data across subdistricts seamlessly.
Bar charts provide a clear breakdown of key metrics, enabling users to explore detailed patterns and visualize data intuitively.
Bar charts provide a clear breakdown of key metrics, enabling users to explore detailed patterns and visualize data intuitively.
Bar charts provide a clear breakdown of key metrics, enabling users to explore detailed patterns and visualize data intuitively.
Household water usage data differentiates between purposes, revealing patterns and key dependencies.
Household water usage data differentiates between purposes, revealing patterns and key dependencies.
Household water usage data differentiates between purposes, revealing patterns and key dependencies.
Community voices reveal valuable insights. Highlighted keywords help users uncover patterns and priorities.
Community voices reveal valuable insights. Highlighted keywords help users uncover patterns and priorities.
Community voices reveal valuable insights. Highlighted keywords help users uncover patterns and priorities.

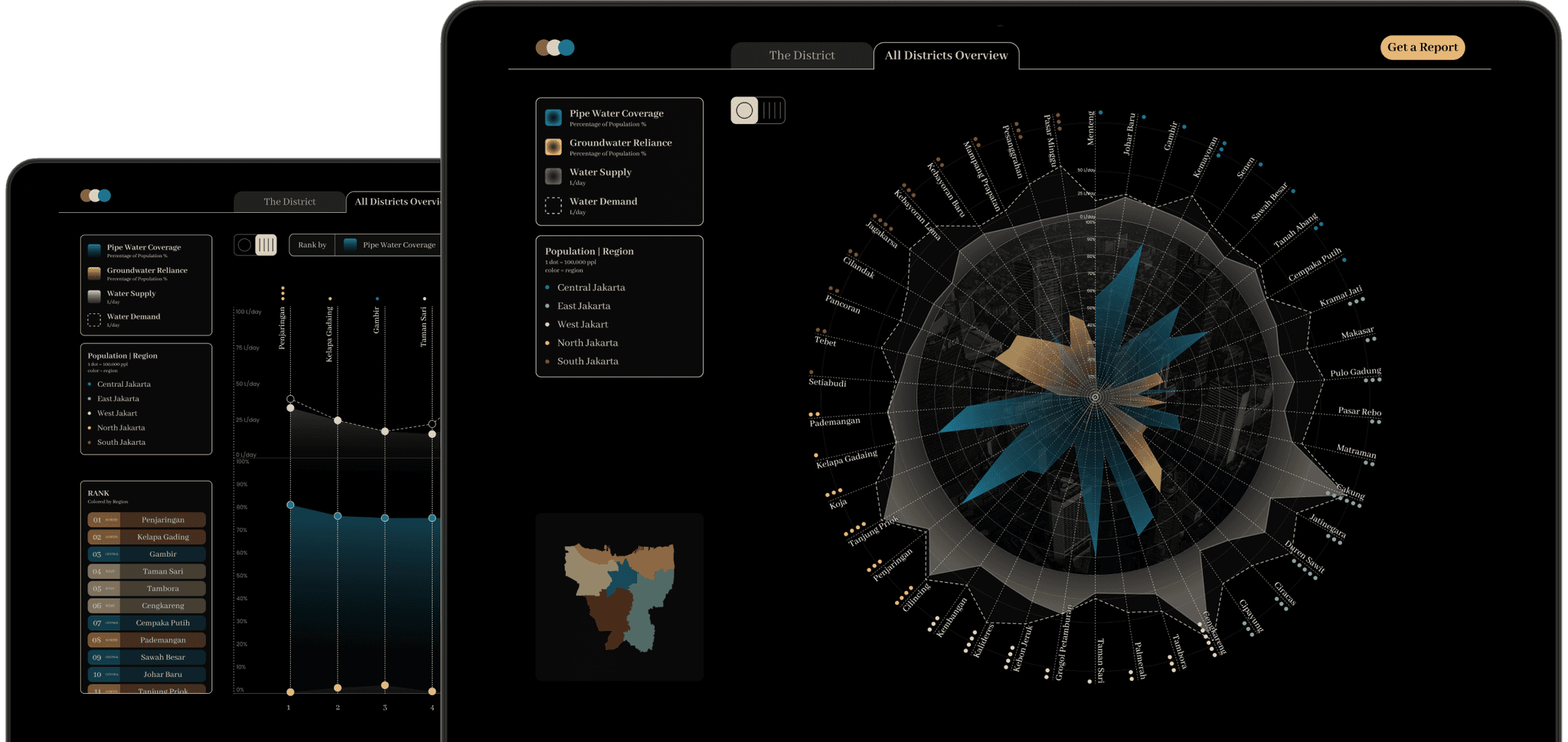

Region & All Districts
Ranking, comparison, and sorting provide users with clear insights into district-level conditions within a regional context.
Ranking, comparison, and sorting provide users with clear insights into district-level conditions within a regional context.
Ranking, comparison, and sorting provide users with clear insights into district-level conditions within a regional context.

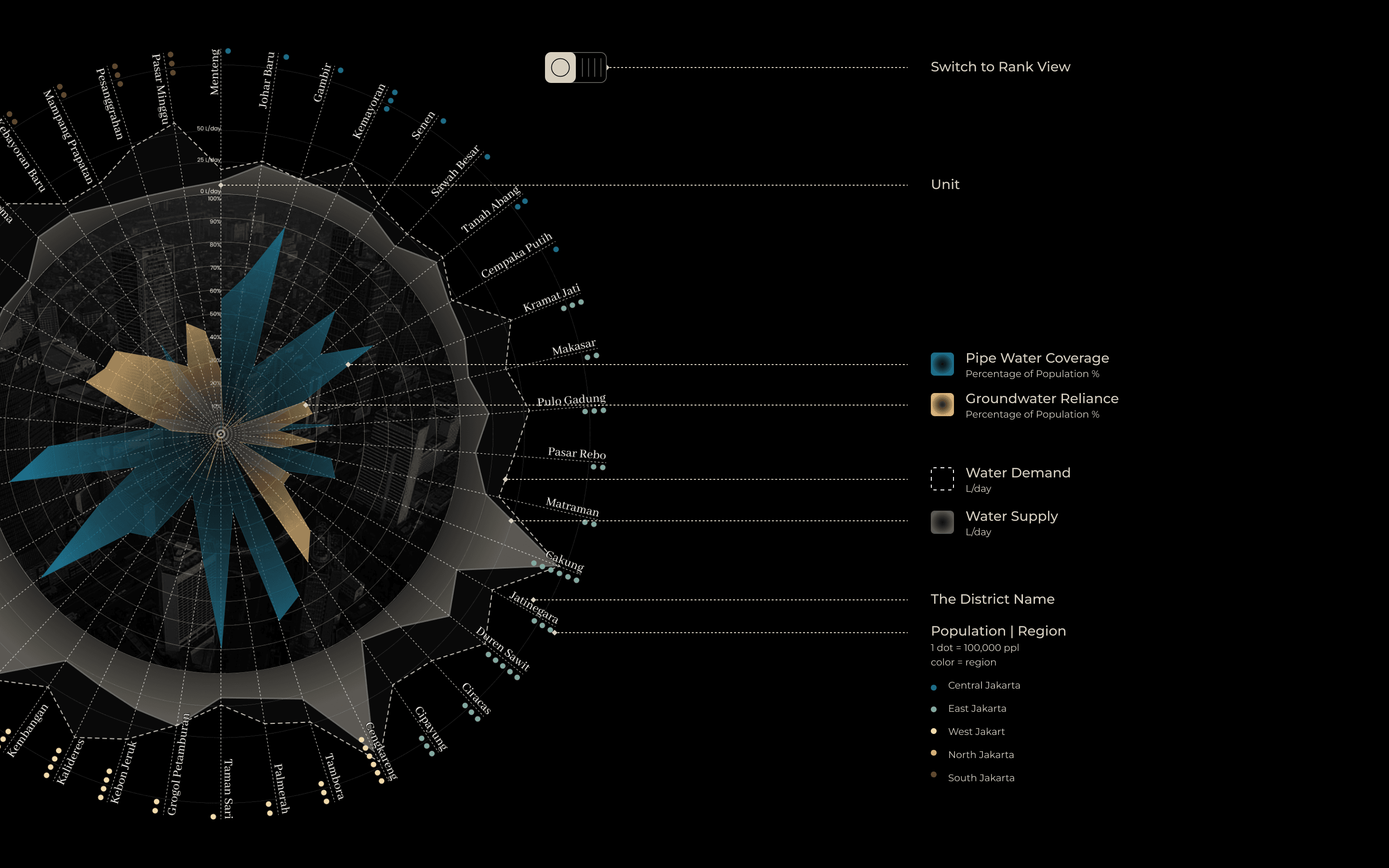

Users can seamlessly toggle between radial and ranked line chart views.
Users can seamlessly toggle between radial and ranked line chart views.
Users can seamlessly toggle between radial and ranked line chart views.

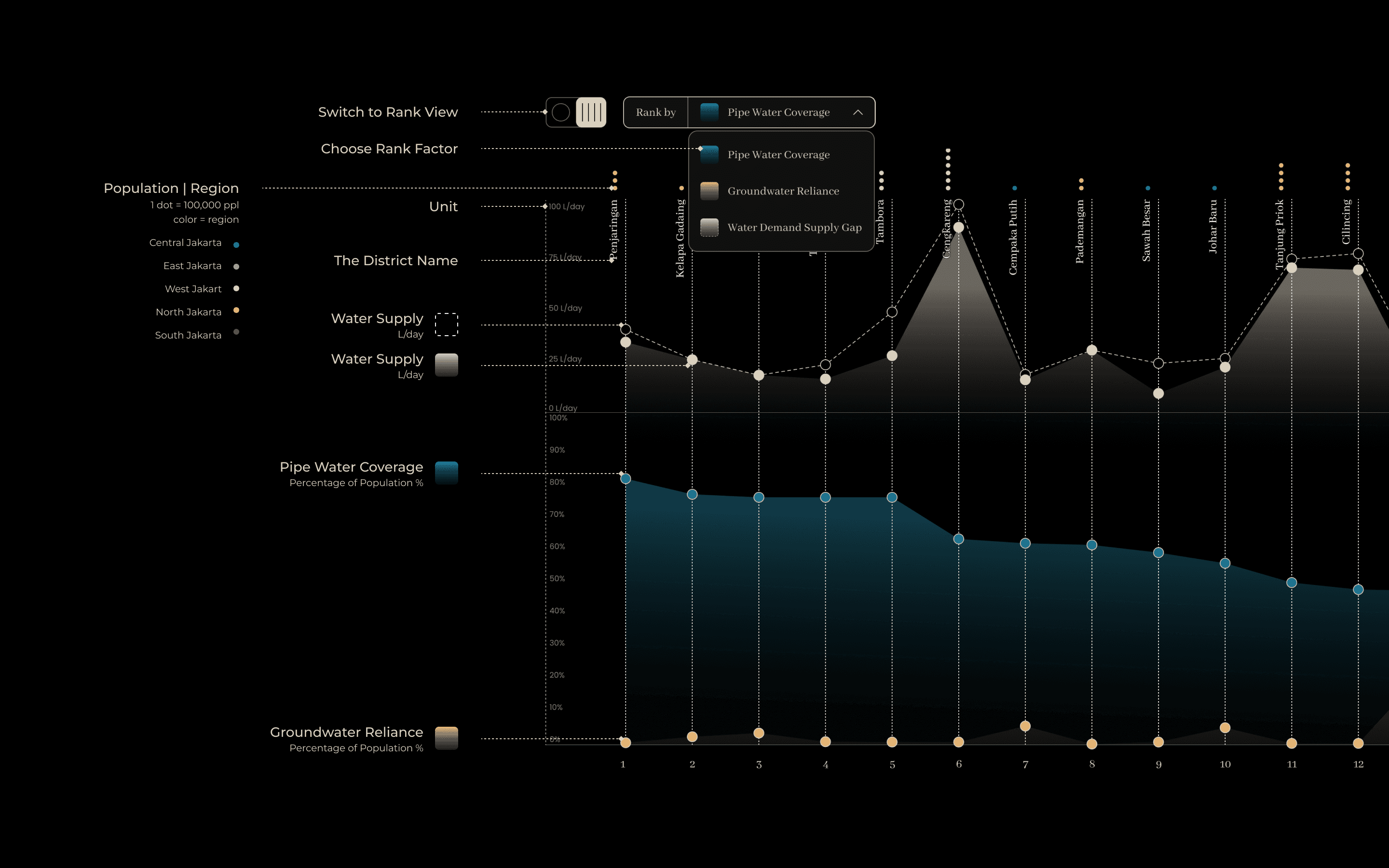

In the ranked view, users can select specific factors to rank districts, uncovering patterns and correlations across conditions to support data-driven decisions.
In the ranked view, users can select specific factors to rank districts, uncovering patterns and correlations across conditions to support data-driven decisions.
In the ranked view, users can select specific factors to rank districts, uncovering patterns and correlations across conditions to support data-driven decisions.

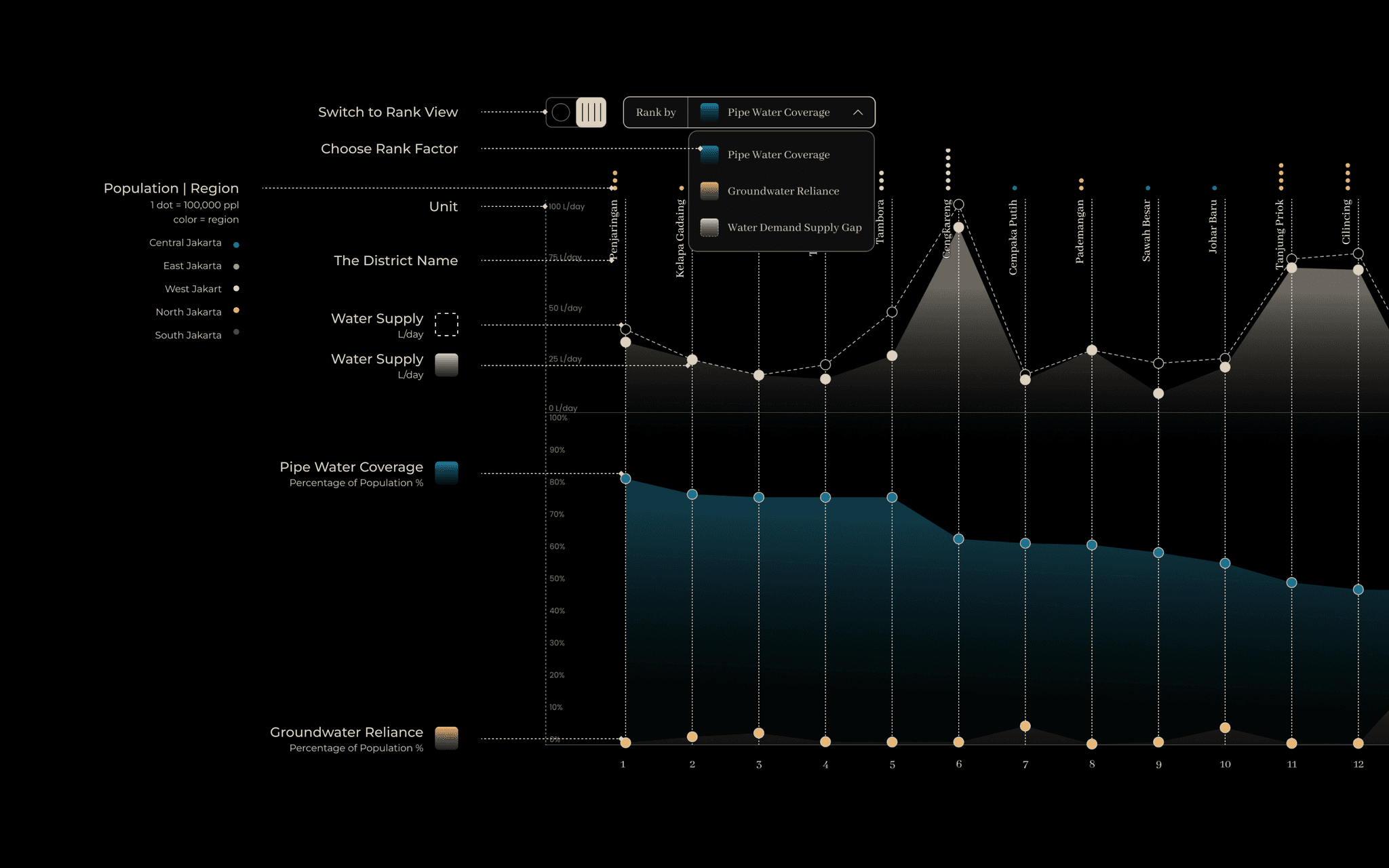

Linked Rank bar with the chart for intuitive navigation
Linked Rank bar with the chart for intuitive navigation
Linked Rank bar with the chart for intuitive navigation
